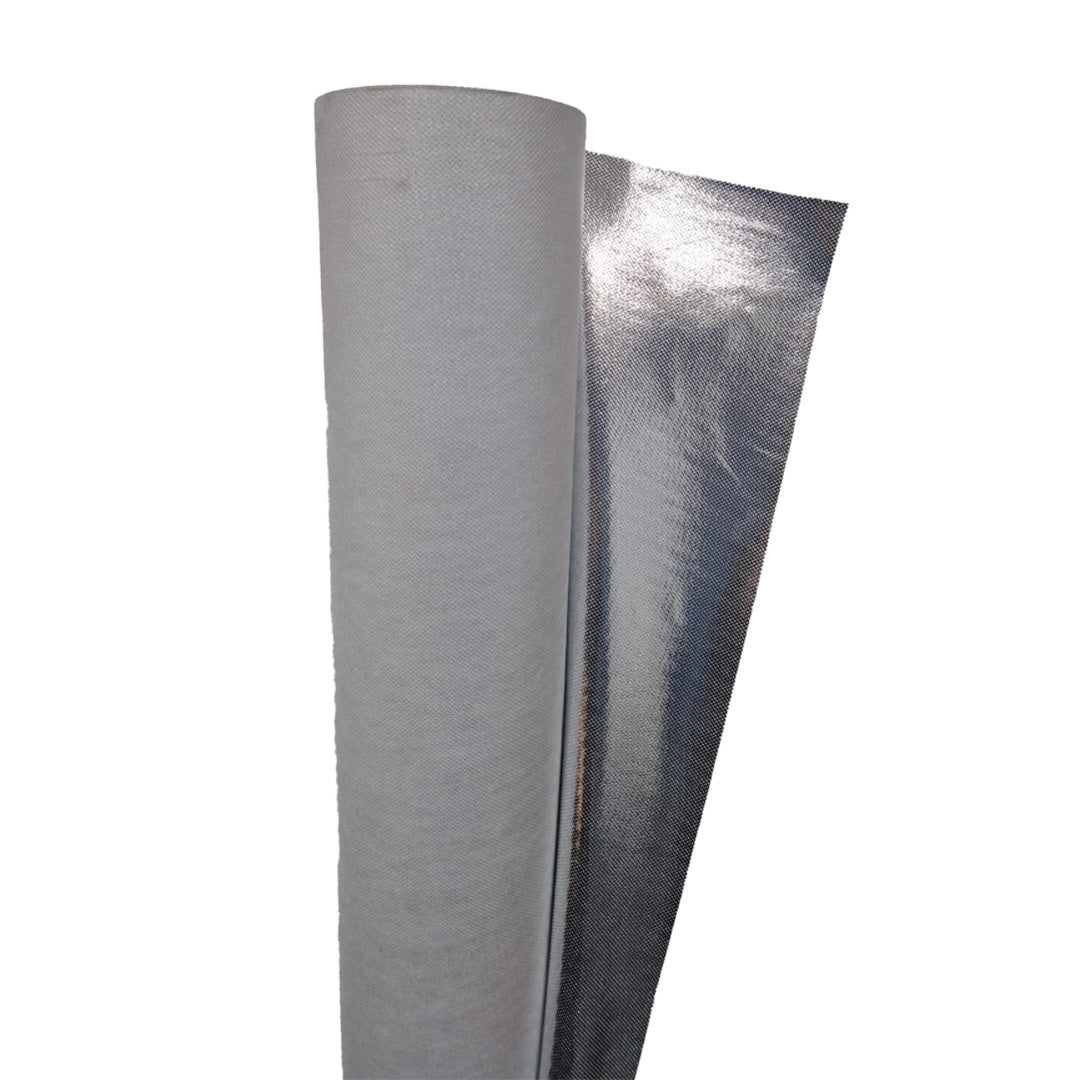

Novia VC8 Reflective Air Leakage & Vapour Control Layer (AVCL) - 50m X 1.5m (75m²)

• Air-tight vapour control layer (AVCL)
  Designed to function as both an air leakage barrier and vapour control layer within insulated wall, roof and floor constructions.

• Low vapour permeability (Sd 8m)
  Provides controlled resistance to moisture vapour diffusion in accordance with EN 1931 / EN ISO 12572.

• High reflectivity (86%) surface
  Tested to EN 15976. When installed facing a minimum 25mm air cavity, it can contribute to improved U and R values of the overall construction.

• CE Approved to BS EN 13984
  Conforms to the harmonised European standard for flexible sheets for waterproofing – vapour control layers.

• Resistance to water penetration – Pass (EN 1928)
  Provides resistance to water penetration in accordance with the stated test method.

• Tensile strength MD/CD: 130 / 90 N/50mm (EN 12311-1)
  Suitable mechanical performance for installation within framed constructions.

• Tear resistance MD/CD: 65 / 65 N (EN 12310-1)
  Provides resistance to tear propagation during handling and installation.

• Reaction to fire: Class F (EN 13501-1)
  Classified in accordance with the European reaction to fire standard.

• Helps meet BS 5250 requirements
  Supports compliance with condensation control guidance when correctly specified and installed.

• System installation with Novia® tapes
  Must be installed using Novia® tapes to achieve an effective air-tight seal and intended performance.

• Standard roll size: 1.5m x 50m (6kg roll weight)
  Manufactured to EN 1848-2 and EN 1849-2 dimensional standards.

Walls

Novia® VC8 Reflective Vapour Control Layer is used in insulated wall constructions as an air leakage barrier and vapour control layer (AVCL). It is installed on the warm side of the building envelope to manage moisture vapour movement and reduce the risk of interstitial condensation within the wall structure. When used in conjunction with Novia® breather membranes on the cold side, Novia® VC8 Reflective supports compliant wall build-ups in accordance with BS 5250. For improved thermal performance, the reflective surface should face a minimum 25mm air cavity when correctly installed.

Roofs

Novia® VC8 Reflective Vapour Control Layer is used in insulated roof applications as an internal air-tight vapour control layer. Installed on the warm side of the roof construction, it helps to minimise moisture vapour diffusion and air leakage that can lead to condensation within the insulation layer. Novia® VC8 Reflective should be fully sealed using Novia® tapes to achieve the required air-tightness performance and is typically used in conjunction with a Novia® breather membrane on the external (cold) side of the roof structure.

Floors

Novia® VC8 Reflective Vapour Control Layer is used in insulated floor constructions to control moisture vapour movement and reduce air leakage. Positioned on the warm side of the insulated floor build-up, it provides a low vapour permeability layer designed to limit condensation risk within the construction. As with wall and roof applications, Novia® VC8 Reflective must be installed using compatible Novia® tapes to ensure a continuous and fully sealed air-tight barrier.

Insulated Frame Applications

Novia® VC8 Reflective Vapour Control Layer is ideal for use in insulated frame applications when installed as part of a complete membrane system. It is designed to be used internally on the warm side of the structure, working in conjunction with Novia® breather membranes installed on the external cold side prior to cladding. This system approach supports effective moisture management and improved thermal performance when correctly detailed and sealed.

What is Novia® VC8 Reflective?

Novia® VC8 Reflective is a reflective air-tight vapour control layer (AVCL) designed to manage the movement of water vapour and air within building structures. It acts as a barrier to prevent moisture from penetrating and condensing inside walls, roofs, and floors, while improving the insulation performance of the construction.

What are the main benefits of using Novia® VC8 Reflective?

Novia® VC8 Reflective provides low moisture vapour permeability and a highly reflective surface, which helps reduce interstitial condensation and improve U and R values. It enhances energy efficiency, protects building materials from moisture damage, and supports compliance with BS 5250 when installed correctly.

What types of construction is Novia® VC8 Reflective suitable for?

Novia® VC8 Reflective is suitable for use in timber-frame, masonry, and insulated constructions, including walls, roofs, and floors. It works effectively in combination with Novia® breather membranes for complete moisture and air control in both domestic and commercial buildings.

How should Novia® VC8 Reflective be installed?

Install Novia® VC8 Reflective on the warm side of the building envelope, inside the insulated structure. Fix it with galvanised or stainless steel fixings and seal all joints and penetrations using Novia® tapes (30mm Double Sided Butyl Tape or Metalised BOPP Tape). Ensure overlaps of at least 150mm on studs or rafters, and position the reflective side facing a minimum 25mm air cavity for optimal performance.
