Proctor Fireshield - Vapour Permeable Walling Underlay - 20m x 1.1m Roll

• The unique intumescent coating helps protect the
substrate
• Vapour permeable walling underlay for use either
directly onto sheathing or insulation
• Class B, s1-d0 but performs differently to other similar
class products
• Complies with BS5250, BS4016 & NHBC
requirements for vapour permeable walling underlays
• Ideal for use in rainscreen / façade construction
• Part B compliant in relevant buildings and those over
11m/18m

What is Fireshield®?

Fireshield is a vapour-permeable walling underlay with an intumescent-coated surface for external wall and façade construction.

How does Fireshield help protect against fire?

Its intumescent coating reacts to heat and helps protect the substrate by reducing the risk of fire taking hold, as well a

What is the fire classification of Fireshield?

Fireshield achieves a reaction to fire classification of B-s1,d0 in accordance with EN 13501-1.

Where can Fireshield be used?

It is suitable for rainscreen façades, external wall systems and multiple-storey buildings, installed directly onto sheathing or insulation.

Is Fireshield vapour permeable?

Yes. It has an Sd value of 0.08 m, allowing water vapour to pass through the wall build-up.

What water resistance does Fireshield provide?

Fireshield achieves a W1 classification for resistance to water penetration.

How is Fireshield installed?

It is installed in the same way as a standard breather membrane and fixed mechanically to the substrate.

Can Fireshield be used on taller buildings?

It is suitable for relevant applications in buildings over 18 m, or over 11 m in Scotland, subject to the project design and current regulations.

Is Fireshield BBA certified?

Yes. Fireshield is covered by BBA Certificate 19/5653.

What size rolls are available?

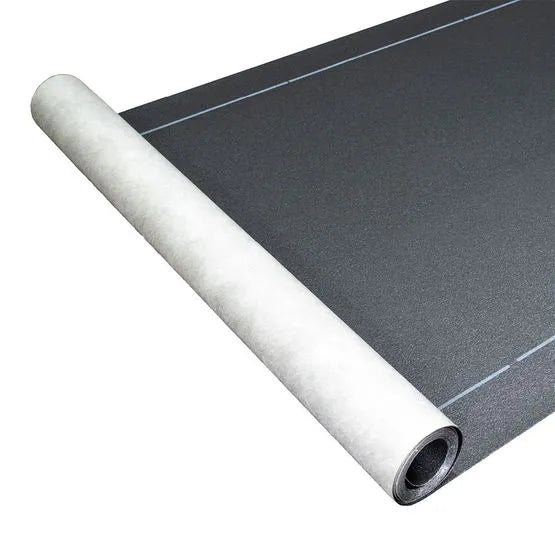

Fireshield is supplied in rolls measuring 1.1 m by 20 m.
