Proctor Wrapseal Vapour Permeable Interface Membrane - EPDM Alternative

Name: Proctor Wrapseal Vapour Permeable Interface Membrane - EPDM Alternative
Brand: A Proctor Group
SKU: 53833205481819
Availability: InStock

Call to enquire

Bulk deals available – Call 020 3004 5451

Estimated Delivery Date

Trusted UK Supplier

See our reviews!

Delivery & Shipping

Standard: 7-10 Working Day Delivery

Express: Same/Next Day Delivery - subject to availability, please call: 020 3004 5451

For further information, please see our Delivery & Shipping Policy here.

Contact

Have any questions or need assistance with this product?

Phone: 020 3004 5451

Email: sales@nationalinsulationsupplies.com

Returns

This product is a non-returnable product, please see our Return and Refund Policy for further details.

Product Datasheets

Product Datasheet

Proctor Wrapseal

Product Locations Membrane and VCL - Datasheet
Membrane & AVCL

Wrapseal Install Guide

Install Guide

Description

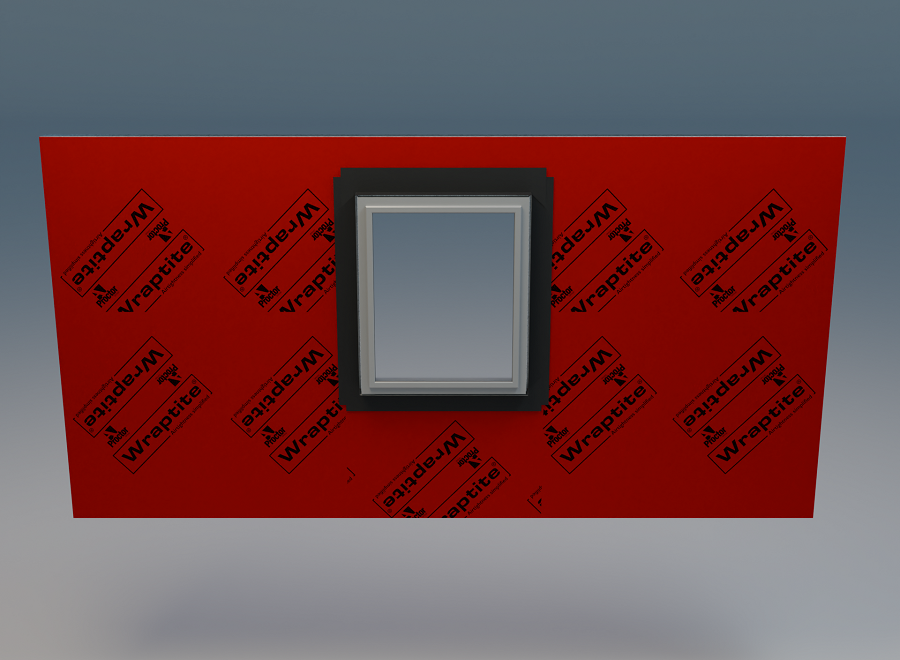

Wrapseal® is a flexible interface membrane designed to create a durable airtight and weathertight seal around windows, doors and other similar openings within the building envelope. (Self-Adhered Interface Membrane for Windows, Doors and Façade Openings)

The membrane’s flexible and fully self adhesive construction allows it to provide a continuous seal between the opening and the surrounding substrate, replacing traditional adhesive applied EPDM’s.

Wrapseal is vapour permeable and airtight, allowing moisture vapour to escape from the building fabric while maintaining airtightness performance, and resisting water penetration. Installed in conjunction with Wraptite® LF liquid flashing, the system provides secure sealing to deliver a robust installation.

Designed as alternative to impermeable EPDM’s
UV Resistant
Class B-s2,d0 over cement based sheathing
Fully self adhesive
Compatible with Wraptite® and Proctor A1 Cement Board
Flexible non-woven construction

Airtight and weather-resistant
Vapour permeable
Seamless sealing with Wraptite® LF
Compatible with multiple substrates
Supports high-performance building envelopes

Specifications

Reaction to fire

Class B-s2,d0* BS EN 13501-1
Nominal weight

392 g/m2 (incl. liner)
Tensile strength MD / CD

EN 12311-1 MD (490N/50mm MD , 480N/50mm , CD 330N/50mm)
Water vapour permeability in Sd

EN ISO 12572 (C) Sd 0.06m
Resistance to water penetration (after ageing)

EN 1928:2000 Method A Class W1
Tear Resistance MD / CD

EN 12310-1 MD 327.38N / CD 453.38N

Key Features

• Vapour permeable
• UV Resistant
• Class B-s2,d0 over cement based sheathing
• Fully self adhesive
• Designed as alternative to impermeable EPDM’s
• Compatible with Wraptite® and Proctor A1 Cement Board
• Flexible non-woven construction
• Airtight and weather-resistant
• Seamless sealing with Wraptite® LF
• Compatible with multiple substrates
• Supports high-performance building envelopes

Where to use

Self-Adhered Interface Membrane for

Windows
Doors
Façade Openings

Frequently asked questions

Do you need a minimum overlap? Or a minimum rise up the upstand?

We advise a minimum 20-30mm bond against the upstand with a minimum bond of 100mm to the sheathing.

How do you detail if not using the L brackets?

Other brackets are available but the principals are the same in all instances. Ensure you get a clean, secure bond between the Wrapseal
and the window upstand that can be well sealed. Also ensure you can get a good seal to the substrate. Liquid fl ashing can be used to seal
all areas. Watch for puncturing or damage in all instances and these can be remediated with a patch or Wraptite® LF.

How important is Liquid Flashing?

Wraptite LF is critical to complete the system installation. It is there to help seal and detail around the edges etc of the Wrapseal rather
than being used to provide the adhesive bond as is required with more traditional EPDM systems.

Do I need an external membrane?

You don’t have to use an external membrane as long as you take into account the weather resistance of the through wall construction.
We have tested Wrapseal with our Wraptite on the sheathing board and without. Use of an external membrane may be required for
additional weather resistance or airtightness of the structure.

Will the use of Wrapseal guarantee my airtightness and watertightness?

If installed as per our instructions, then you should get good results in terms of the airtightness and watertightness. As a component
performance will very much depend on the quality of workmanship.
