Ravago Ravatherm XPS X 300 SL 600mmx1250mm

Name: Ravago Ravatherm XPS X 300 SL 600mmx1250mm
Brand: Ravago
SKU: 53722173178203
Availability: InStock

£0.00 GBP

Shipping calculated at checkout.

Call to enquire

Bulk deals available – Call 020 3004 5451

Estimated Delivery Date

Trusted UK Supplier

See our reviews!

Delivery & Shipping

Standard: 5-7 Working Day Delivery

Express: Same/Next Day Delivery - subject to availability, please call: 020 3004 5451

For further information, please see our Delivery & Shipping Policy here.

Contact

Have any questions or need assistance with this product?

Phone: 020 3004 5451

Email: sales@nationalinsulationsupplies.com

Returns

This product is a non-returnable product, please see our Return and Refund Policyfor further details.

Product Datasheets

Technical Datasheet

Ravatherm XPS X 300 SL

Declaration of Performance:

Ravatherm XPS X 300 SL

Other Documents:

Handy Guide

Bim Objects

Brochure

Description

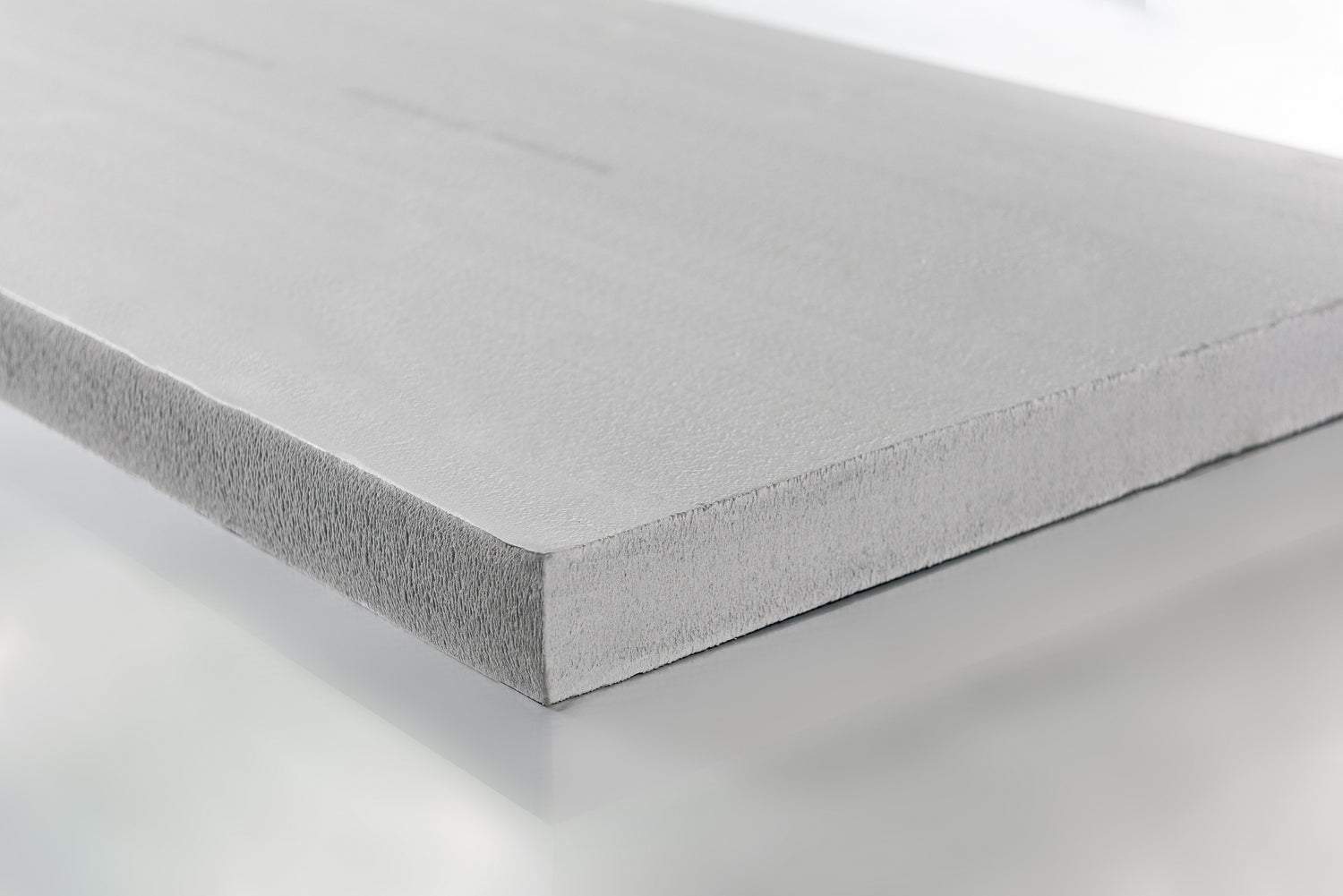

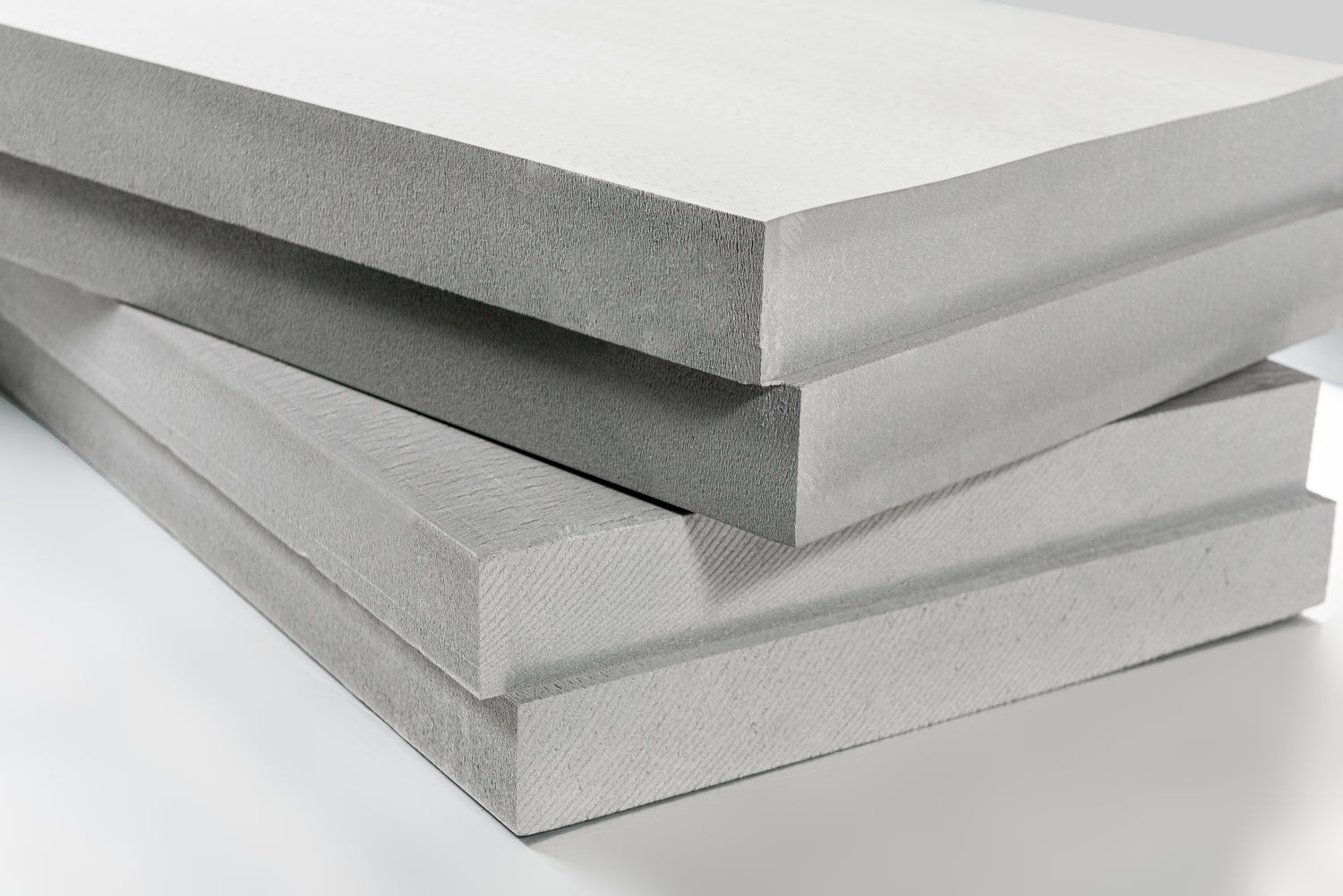

Ravatherm XPS X 300 SL is an XPS thermal insulation board for use on inverted flat roofs, green, brown and blue roofs^*. It has a declared thermal conductivity of 0.030 W/m.K for thicknesses up to and including 120mm, and 0.031 W/m.K for thicknesses above this.

300kPa compressive strength (according to EN 826)

130kPa compressive creep (2% deformation after 50 years according to EN 1606)

Available in all thicknesses 50mm up to 200mm.:

50mm (8 boards/pack - 6m²/pack) - 48 packs/pallet = 288m²
80mm (5 boards/pack - 3.75m²/pack) - 48 packs/pallet = 180m²
100mm (4 boards/pack - 3m²/pack) - 48 packs/pallet = 144m²
115mm (3 boards/pack - 2.25m²/pack) - 56 packs/pallet = 126m²
120mm (3 boards/pack - 2.25m²/pack) - 56 packs/pallet = 126m²
130mm (3 boards/pack - 2.25m²/pack) - 56 packs/pallet = 126m²
140mm (3 boards/pack - 2.25m²/pack) - 48 packs/pallet = 108m²
145mm (3 boards/pack - 2.25m²/pack) - 48 packs/pallet = 108m²
160mm (2 boards/pack - 1.5m²/pack) - 64 packs/pallet = 96m²
165mm (2 boards/pack - 1.5m²/pack) - 64 packs/pallet = 96m²
175mm (2 boards/pack - 1.5m²/pack) - 56 packs/pallet = 84m²
180mm (2 boards/pack - 1.5m²/pack) - 56 packs/pallet = 84m²
190mm (2 boards/pack - 1.5m²/pack) - 48 packs/pallet = 72m²
195mm (2 boards/pack - 1.5m²/pack) - 48 packs/pallet = 72m²
200mm (2 boards/pack - 1.5m²/pack) - 48 packs/pallet = 72m²

Specifications

Length

1250
Width

600
Thermal conductivity

0.030 - 0.031
Fire rating

E
Reaction to fire

Euroclass E according to BS EN 13501‑1:2018
Compressive strength

300kPa
Edge

Edge Profile Ship lap

Key Features

High-performance XPS (Extruded Polystyrene) insulation board.
Excellent thermal insulation to help reduce heat loss.
High compressive strength of 300 kPa, making it suitable for load-bearing applications.
Low water absorption for reliable performance in damp environments.
Durable, rot-resistant, and long-lasting insulation solution.
Easy to cut, handle, and install on site.
Suitable for new-build and refurbishment projects.
600 x 1250mm board size for efficient installation and reduced waste.

Where to use

Ravago Ravatherm XPS X 300 SL insulation boards are suitable for a wide range of applications, including:

Inverted Roofs
Green Roofs
Roof Terraces
Car Park Decks

Always ensure the product is installed in accordance with the manufacturer's installation guidance and current UK Building Regulations.

Frequently asked questions

What is Ravatherm XPS X 300 SL used for?
It is a high-performance extruded polystyrene (XPS) insulation board designed for floors, inverted roofs, basements, green roofs, and other applications where high compressive strength and moisture resistance are required.

What does 300 SL mean?
The "300" refers to the board's compressive strength of 300 kPa, making it suitable for applications subjected to moderate structural loads.

Is Ravatherm XPS waterproof?
Ravatherm XPS has very low water absorption, making it ideal for use in damp or below-ground environments. However, it is not intended to act as a waterproofing membrane.

Can Ravatherm XPS X 300 SL be used under concrete floors?
Yes. It is commonly installed beneath concrete floor slabs to improve thermal performance while supporting structural loads.

Can the boards be cut to size?
Yes. The boards can be cut using a fine-toothed saw or a sharp insulation knife for a precise fit.

What board size is available?
This product is supplied in 600 x 1250mm boards in a range of thicknesses to suit different insulation requirements.

Is this product suitable for domestic and commercial projects?
Yes. Ravatherm XPS X 300 SL is suitable for both residential and commercial construction where high-performance insulation is required.
