Siderise DWX Acoustic Duct Insulation Wrap

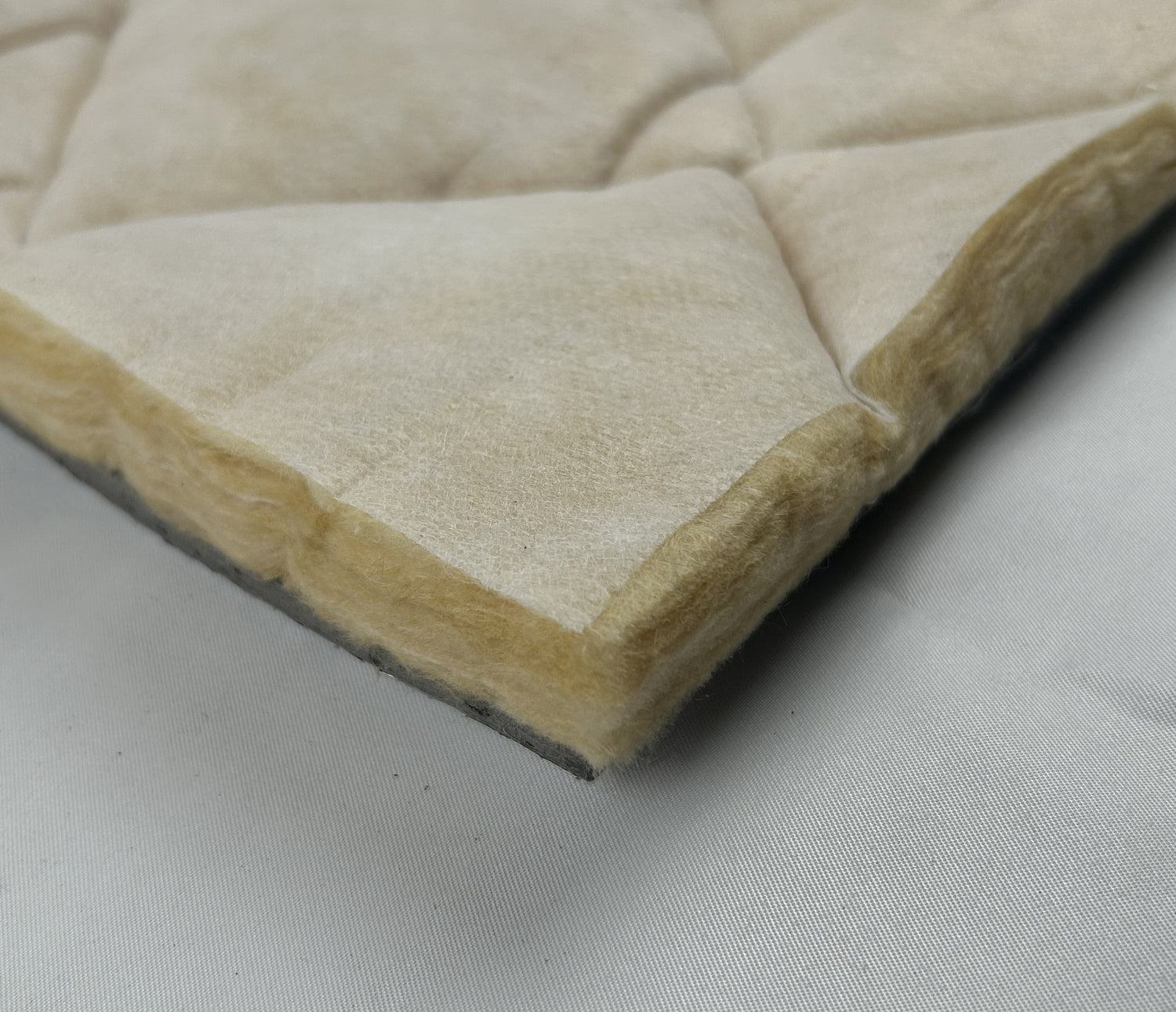

Flexible resin-bonded glass fibre quilt with anti-dusting fleece

Diamond-stitched for stability during handling and installation

Heavy polymeric acoustic membrane (10 kg/m² surface weight)

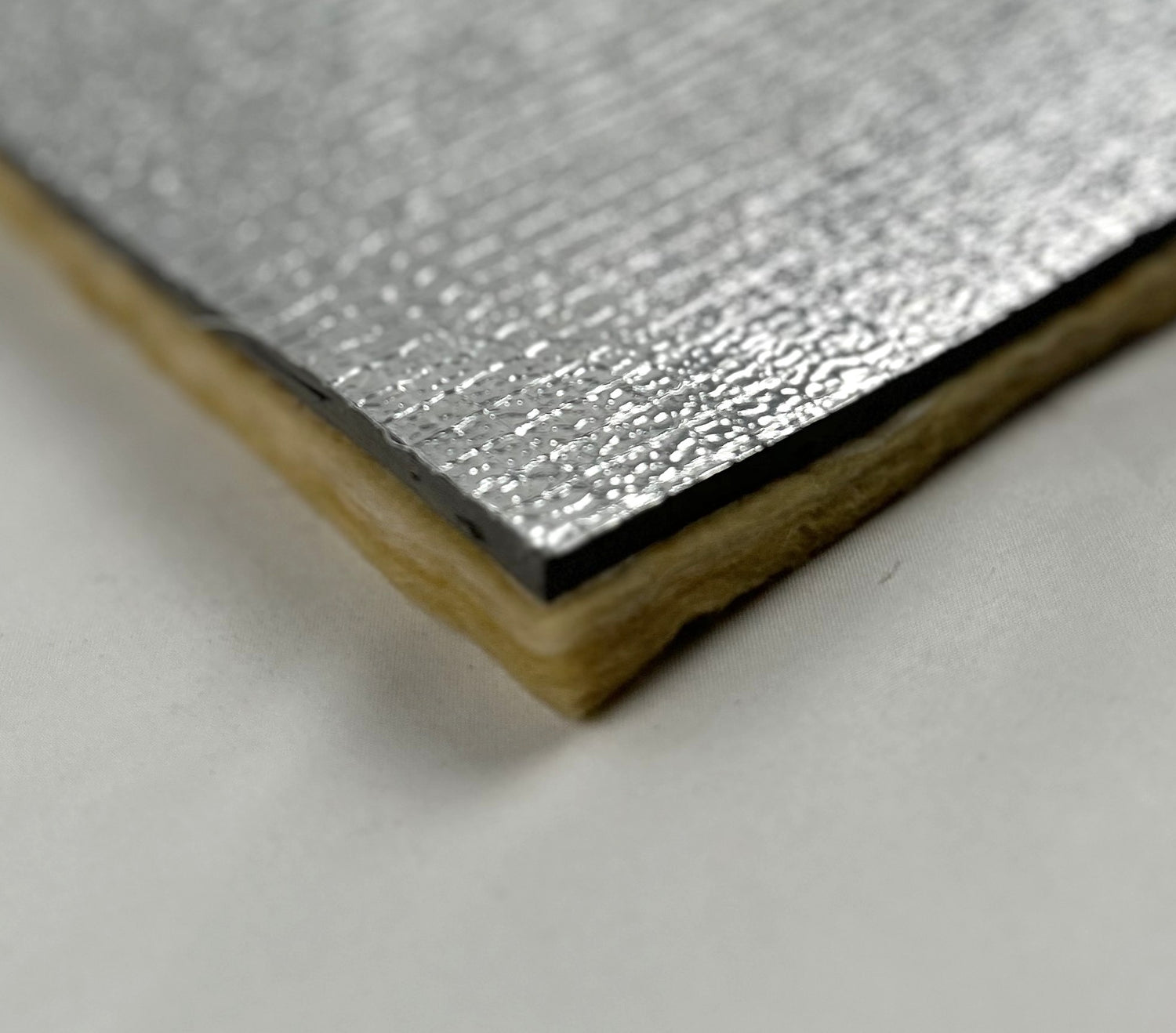

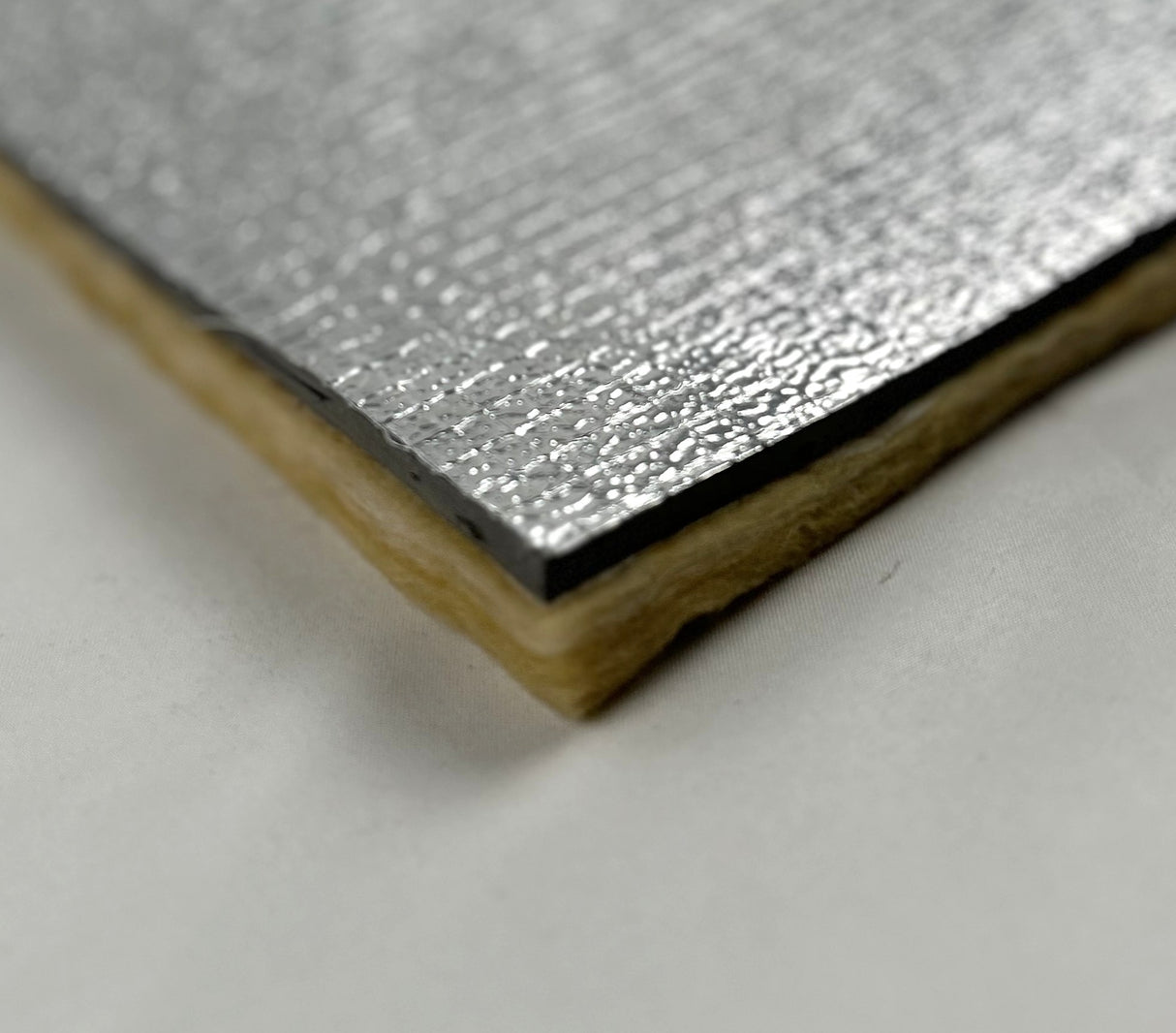

Class 0 reinforced aluminium foil vapour barrier for external use

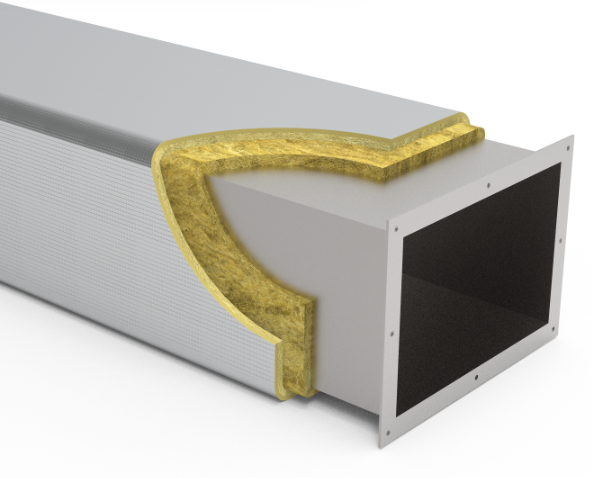

Enhances sound transmission loss in low-mass, thin-sheet HVAC duct constructions

Suitable for complex geometries in duct systems

Provides beneficial dampening characteristics

• HVAC ductwork – Applied to reduce noise transfer and improve insulation performance in heating, ventilation, and air conditioning systems.

• Ventilation plant and equipment – Used to minimise noise emissions from fans, blowers, and other air handling units.

• Concrete columns – Wrapped to reduce reverberation and unwanted sound in structural areas.

• Compressors and generators – Helps contain operational noise and improve acoustic control.

• Process plant and electrical equipment – Provides both acoustic and thermal benefits in industrial environments.

What is the main function of the Siderise DWX Duct Insulation Wrap?

It reduces airborne noise from duct systems and equipment while improving thermal insulation performance.

Can the DWX wrap be used on external ductwork?

Yes. The foil-faced vapour barrier and robust construction make it suitable for external applications.

Is it suitable for irregularly shaped ducts?

Yes. The flexible construction allows the wrap to conform to complex duct geometries and equipment shapes.
