AIM  |  SKU: 48644982440283

AIM Tenmat FF102/50 Ventilated Cavity Fire Barrier

Shipping calculated at checkout.
Call to enquire
Bulk deals available – Call 020 3004 5451
Estimated Delivery Date
trusted uk supplier

Trusted UK Supplier

See our reviews!

Delivery & Shipping

Standard: 7-10 Working Day Delivery

Express: Same/Next Day Delivery - subject to availability, please call: 020 3004 5451

For further information, please see our Delivery & Shipping Policy here.

Contact

Have any questions or need assistance with this product?

Phone: 020 3004 5451

Email: sales@nationalinsulationsupplies.com

Contact us.

Returns

This product is a non-returnable product, please see our Return and Refund Policy for further details.

Product Datasheets

Product Datasheet:

AIM Tenmat FF102/50 Ventilated Cavity Fire Barrier - Datasheet

Things you should know about this product!
  • Suitable for “open-state” ventilated cavities up to 50mm wide

Description

Tenmat’s FF102/50 Ventilated Cavity Fire Barriers are made from a low smoke, zero halogen, high expansion intumescent material. These barriers are designed to maintain fire resistance in ventilated (open-state) external wall cavities under non-fire conditions.

The FF102/50 is produced from a rigid intumescent material, allowing it to be supplied in strip format and covered with a protective aluminium foil layer for ease of handling. In the event of a fire, the intumescent material expands to close the external wall cavity, providing fire resistance for up to 120 minutes, depending on the external wall construction.

The FF102/50 is suitable for cavities up to 50mm and, once installed, will close the remaining free air gap in front of the 6mm cavity barrier, up to a maximum of 44mm, depending on the construction type.

Specifications
  • Length
    1000mm
  • Width
    75mm
  • Material type
    Rigid intumescent material

Key Features
  • This product is made to order which may require an MOQ

Where to use

Timber Frame or Masonry Construction

Inner
Leaf Substrate: Timber Frame** or Masonry

Outer
Leaf Substrate: Masonry

Orientation:
Horizontal

Insulation
Type Within Cavity: None

Maximum
Cavity Width: 50 mm

Maximum
Open State Air Gap: 44 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120** minutes Integrity / 120** minutes
Insulation



Masonry Construction with Hardie® Plank and Alternative
Weatherboards***

Inner
Leaf Substrate: Masonry

Outer
Leaf Substrate: Hardie® Plank and Alternative Weatherboards***

Orientation:
Horizontal

Insulation
Type Within Cavity: None

Option
1:

Maximum
Cavity Width: 25 mm (+8 mm)*

Maximum
Open State Air Gap: 19 mm (+8 mm)*

Option
2:

Maximum
Cavity Width: 38 mm (+8 mm)*

Maximum
Open State Air Gap: 32 mm (+8 mm)*

Option
3:

Maximum
Cavity Width: 50 mm

Maximum
Open State Air Gap: 44 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120 minutes Integrity / 120 minutes Insulation



Masonry Construction with Hardie® VL Plank and
Alternative Weatherboards***

Inner
Leaf Substrate: Masonry

Outer
Leaf Substrate: Hardie® VL Plank and Alternative Weatherboards***

Orientation:
Horizontal

Insulation
Type Within Cavity: None

Option
1:

Maximum
Cavity Width: 38 mm

Maximum
Open State Air Gap: 32 mm

Option
2:

Maximum
Cavity Width: 50 mm

Maximum
Open State Air Gap: 44 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120 minutes Integrity / 120 minutes Insulation



CP Board on SFS with Mineral Fibre External Wall Slab

Inner
Leaf Substrate: CP Board on SFS

Outer
Leaf Substrate: Mineral Fibre External Wall Slab

Orientation:
Horizontal

Insulation
Type Within Cavity: None - mineral fibre formed outer substrate

Option
1:

Maximum
Cavity Width: 15 mm

Maximum
Open State Air Gap: 9 mm

Option
2:

Maximum
Cavity Width: 25 mm

Maximum
Open State Air Gap: 19 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120 minutes Integrity / 120 minutes Insulation

Frequently asked questions

What is the AIM Tenmat FF102/50 Ventilated Cavity Fire Barrier?

The AIM Tenmat FF102/50 Ventilated Cavity Fire Barrier is a fire-resistant product designed to provide a continuous fire barrier within ventilated cavities of external wall systems. It helps prevent the spread of fire while maintaining essential ventilation.

How do you install the AIM Tenmat FF102/50 Ventilated Cavity Fire Barrier?

Installation involves positioning the fire barrier within the ventilated cavity at specified intervals, ensuring a snug fit against the structural elements. Fixings and installation methods should follow the manufacturer's guidelines to ensure proper performance.

What are the benefits of using the AIM Tenmat FF102/50 Ventilated Cavity Fire Barrier?

Key benefits include enhanced fire safety by preventing fire spread through cavities, maintenance of essential ventilation, compliance with building regulations, and ease of installation.

How does the AIM Tenmat FF102/50 Ventilated Cavity Fire Barrier enhance fire safety?

The barrier expands when exposed to heat, sealing gaps in the cavity and preventing the spread of flames and smoke. This containment helps protect the building structure and occupants.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

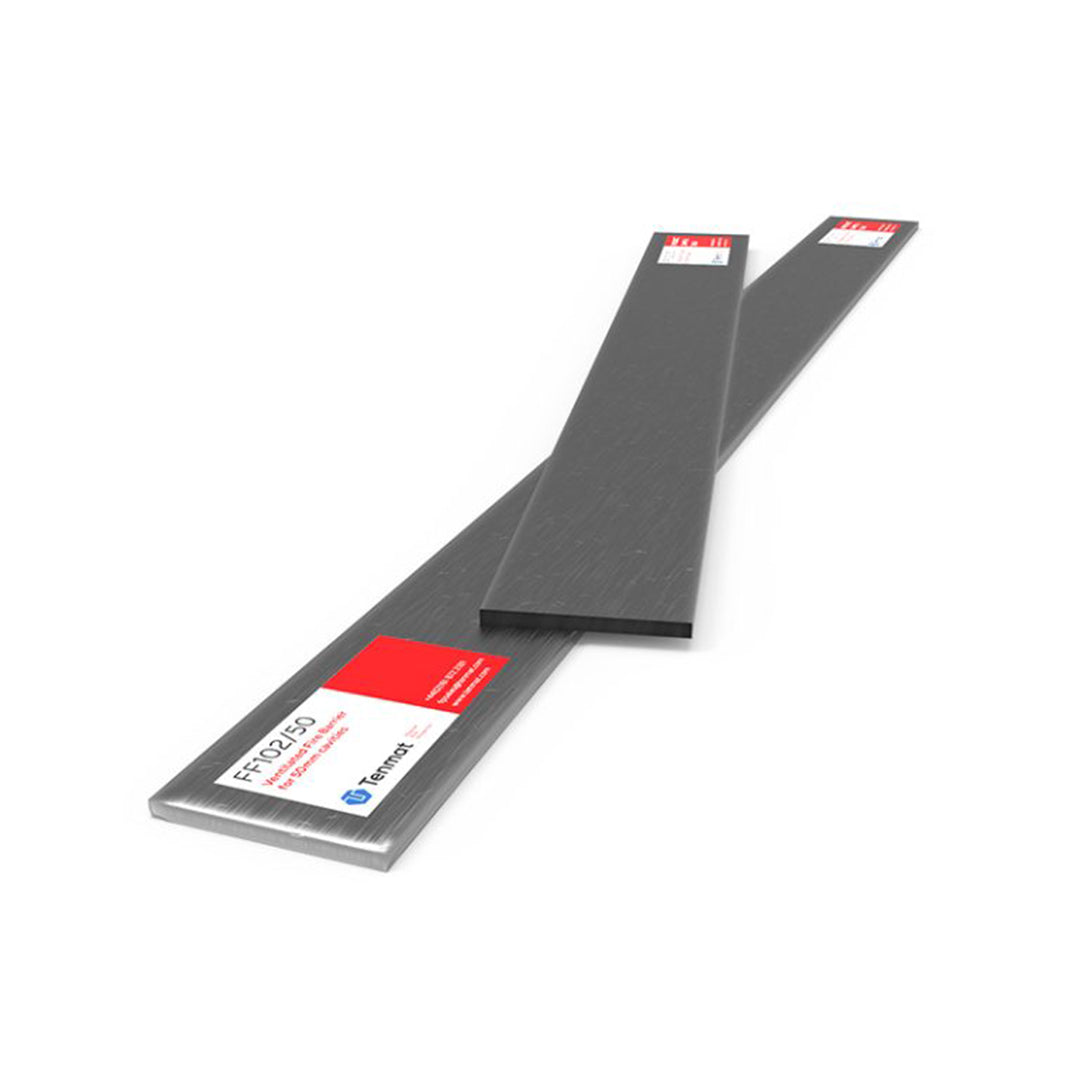

AIM Tenmat FF102-50 displayed on a white background
