AIM  |  SKU: 48645257691483

AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier

Shipping calculated at checkout.
Call to enquire
Bulk deals available – Call 020 3004 5451
Estimated Delivery Date
trusted uk supplier

Trusted UK Supplier

See our reviews!

Delivery & Shipping

Standard: 7-10 Working Day Delivery

Express: Same/Next Day Delivery - subject to availability, please call: 020 3004 5451

For further information, please see our Delivery & Shipping Policy here.

Contact

Have any questions or need assistance with this product?

Phone: 020 3004 5451

Email: sales@nationalinsulationsupplies.com

Contact us.

Returns

This product is a non-returnable product, please see our Return and Refund Policy for further details.

Product Datasheets

Product Datasheet:

AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier - Datasheet

Things you should know about this product!
  • Suitable for “open-state” ventilated cavities up to 25mm wide

Description

The FF102/25 Ventilated Cavity Fire Barrier is made from a low smoke, zero halogen, high expansion intumescent material. It is designed to maintain fire resistance in external wall cavities that need to be ventilated (open-state) under non-fire conditions.

The FF102/25 is produced from rigid intumescent material, provided in strip format and covered with a protective layer of aluminium foil for ease of handling and increased durability. In the event of a fire, the intumescent material expands to close the external wall cavity, providing effective fire resistance for up to 60 minutes, depending on the construction of the external walls.

The FF102/25 is designed for use within a 25mm cavity, and once installed, will close the remaining free air gap of 21mm in front of the 4mm cavity barrier.

Specifications
  • Length
    1000mm
  • Width
    35mm
  • Material type
    Rigid intumescent material

Key Features
  • This product is made to order which may require an MOQ

Where to use

Timber Frame or Masonry Construction

Inner
Leaf Substrate: Timber Frame** or Masonry

Outer
Leaf Substrate: Masonry

Orientation:
Horizontal

Insulation
Type Within Cavity: None

Maximum
Cavity Width: 50 mm

Maximum
Open State Air Gap: 44 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120** minutes Integrity / 120** minutes
Insulation



Masonry Construction with Hardie® Plank and Alternative
Weatherboards***

Inner
Leaf Substrate: Masonry

Outer
Leaf Substrate: Hardie® Plank and Alternative Weatherboards***

Orientation:
Horizontal

Insulation
Type Within Cavity: None

Option
1:

Maximum
Cavity Width: 25 mm (+8 mm)*

Maximum
Open State Air Gap: 19 mm (+8 mm)*

Option
2:

Maximum
Cavity Width: 38 mm (+8 mm)*

Maximum
Open State Air Gap: 32 mm (+8 mm)*

Option
3:

Maximum
Cavity Width: 50 mm

Maximum
Open State Air Gap: 44 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120 minutes Integrity / 120 minutes Insulation



Masonry Construction with Hardie® VL Plank and
Alternative Weatherboards***

Inner
Leaf Substrate: Masonry

Outer
Leaf Substrate: Hardie® VL Plank and Alternative Weatherboards***

Orientation:
Horizontal

Insulation
Type Within Cavity: None

Option
1:

Maximum
Cavity Width: 38 mm

Maximum
Open State Air Gap: 32 mm

Option
2:

Maximum
Cavity Width: 50 mm

Maximum
Open State Air Gap: 44 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120 minutes Integrity / 120 minutes Insulation



CP Board on SFS with Mineral Fibre External Wall Slab

Inner
Leaf Substrate: CP Board on SFS

Outer
Leaf Substrate: Mineral Fibre External Wall Slab

Orientation:
Horizontal

Insulation
Type Within Cavity: None - mineral fibre formed outer substrate

Option
1:

Maximum
Cavity Width: 15 mm

Maximum
Open State Air Gap: 9 mm

Option
2:

Maximum
Cavity Width: 25 mm

Maximum
Open State Air Gap: 19 mm

Product
Dimensions: 6 x 75 x 1000 mm

Product
Fire Resistance Rating: 120 minutes Integrity / 120 minutes Insulation

Frequently asked questions

What is the AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier?

The AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier is a fire-resistant product designed to provide a continuous fire barrier within ventilated cavities of external wall systems. It helps prevent the spread of fire while maintaining essential ventilation.

How do you install the AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier? - Installation involves positioning the fire barrier within the ventilated cavity at specified intervals, ensuring a snug fit against the structural elements. Fixings and installation methods should follow the manufacturer's guidelines to ensure proper performance.

Where can the AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier be used?

This fire barrier is used in ventilated cavities of external wall systems in buildings, including residential, commercial, and industrial structures. It is suitable for use in both new construction and retrofit projects.

How does the AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier enhance fire safety?

The barrier expands when exposed to heat, sealing gaps in the cavity and preventing the spread of flames and smoke. This containment helps protect the building structure and occupants.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

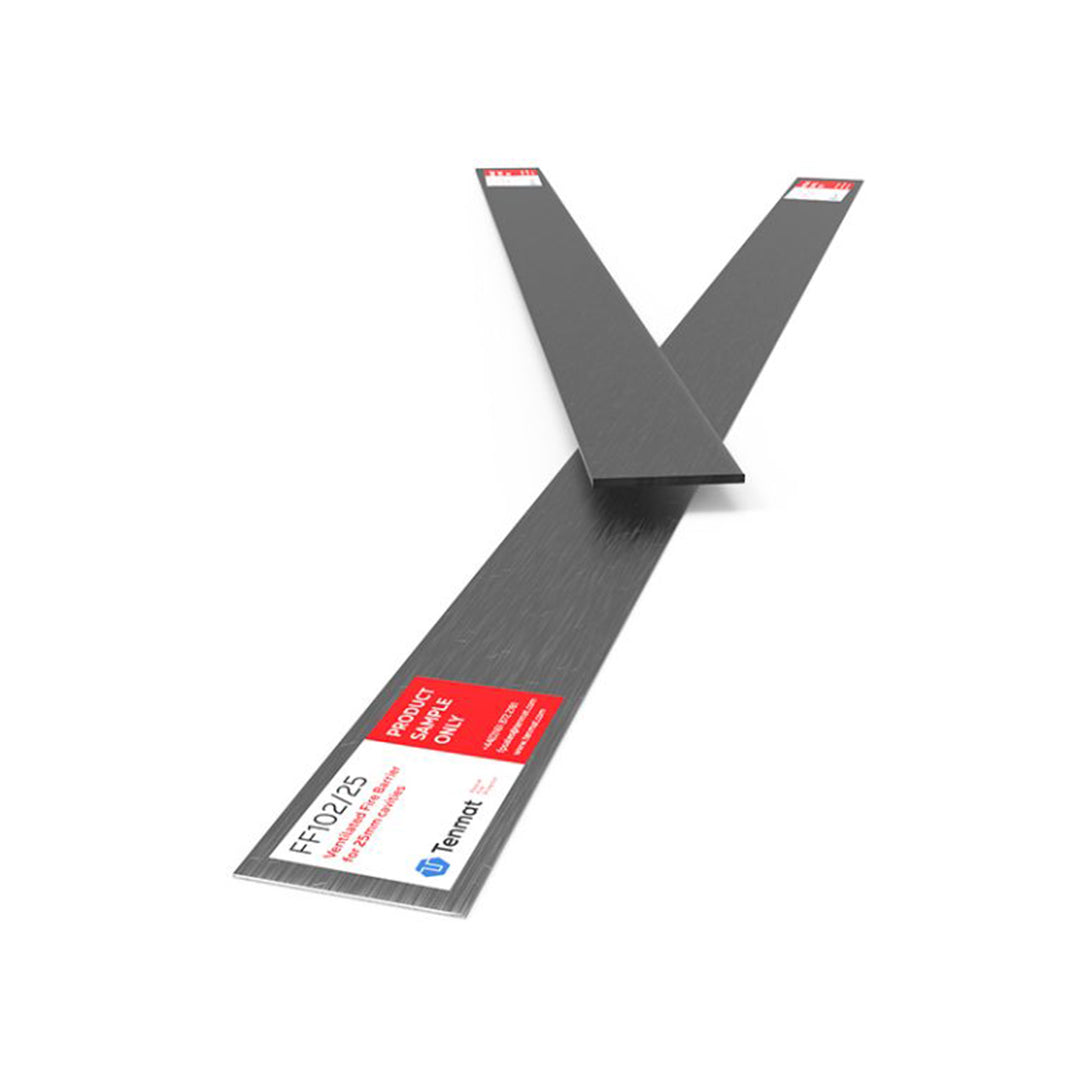

AIM Tenmat FF102-25 displayed on a white background
AIM
AIM Tenmat FF102/25 Ventilated Cavity Fire Barrier

Length

1000mm

Width

35mm

Edge

N/A

Fire rating

N/A

Compressive strength

N/A

Density

N/A

Thermal conductivity

N/A

Material type

Rigid intumescent material
