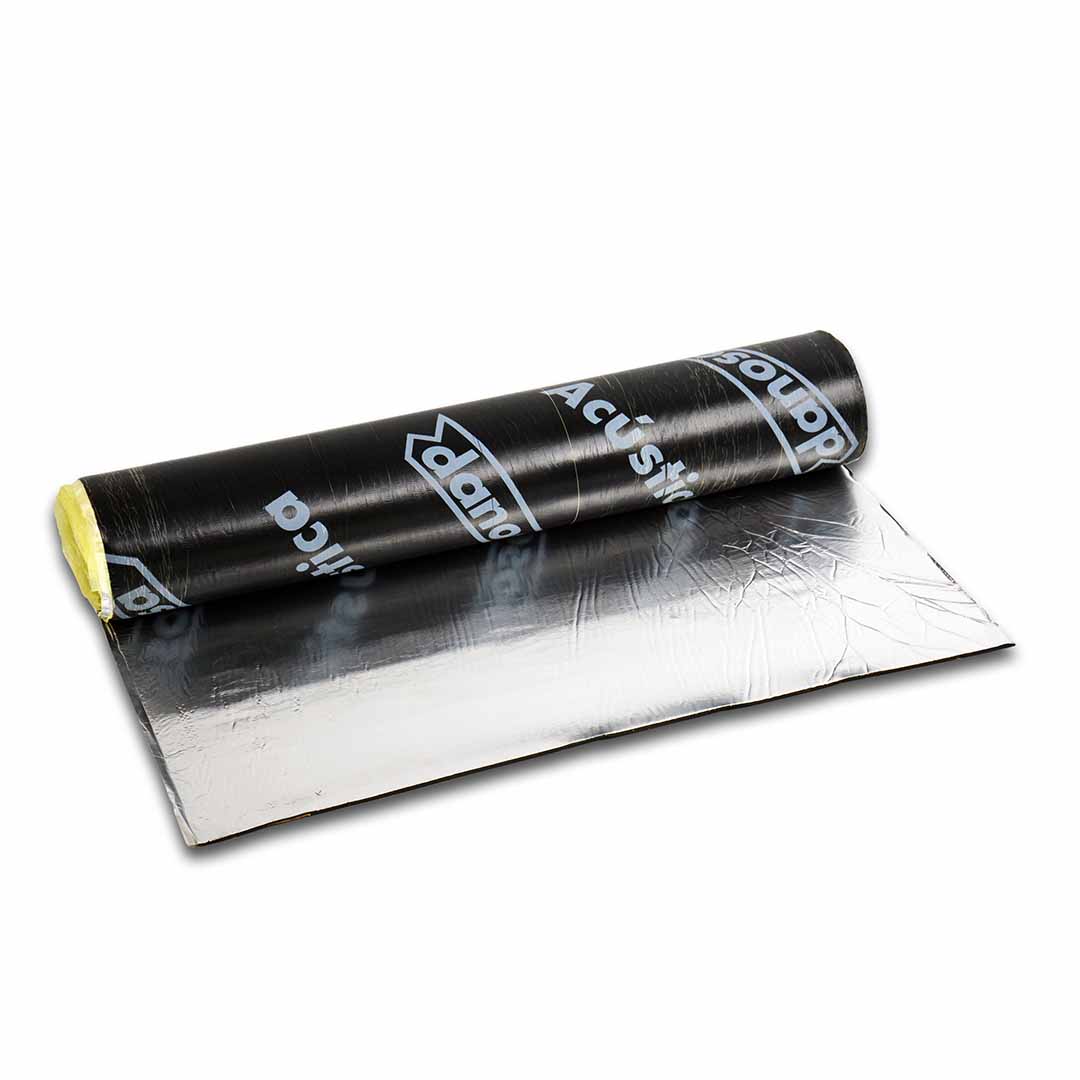

DANOSA M.A.D. PRO 100 - 450cm x 100cm

• Provides substantial acoustic mass for improved sound insulation
• Shifts resonance frequencies of rigid elements for enhanced performance
• Improves low-frequency damping between insulating layers
• Allows reduced cavity depth while maintaining acoustic efficiency
• Can be adhered to galvanised steel to reduce panel resonance
• Acts as an internal vapour barrier
• Exhibits thermo-reflective properties in cavity installations
• Compatible with perforated finishes and technical wood panelling
• Achieves Bs1d0 fire reaction classification

• Industrial roofs with acoustic requirements → Adds mass and reduces resonance in roof systems.
• Anti-resonant layer for galvanised steel → Applied to metal sheets to control panel resonance.
• Partition walls and ceilings → Installed between rigid elements to improve low-frequency performance.
• Spring isolation systems → Placed between spring components to increase low-frequency isolation.
• Cavity applications requiring vapour control → Functions as a vapour barrier while adding acoustic mass.
• Timber panelling & perforated finishes → Suitable for use with perforated or porous finishes and technical wood panelling.


Important Recommendations:

• Ensure façade cladding finishes at dividing walls between different users (SPD 2.1).
• Avoid perforating the system with installations in specified commercial/ground-floor solutions (SPD 2.3, SPD 4.4).
• Partition walls should be plastered to a minimum thickness of 1 cm (SPD 3).
• Do not anchor partition walls directly to structural elements, except where permitted. Bond tiling elements to floating partitions for stability.
• Ceiling dampers must be anchored to joists or reinforced elements; use a grid for very heavy ceilings (SPD 4.2–4.3).
• Fix gypsum plasterboards to galvanised steel framing only — avoid plate-to-plate screws.
• For dry wall cladding above 4 m, use elastic fasteners (SPD 2.5).
• Position the aluminised side towards the cavity interior to maximise thermo-reflective benefits.

What is M.A.D. PRO 100 used for?

It is designed to add acoustic mass to walls, ceilings, roofs and steel sheets to reduce resonance and improve low-frequency sound insulation.

Does M.A.D. PRO 100 provide fire and vapour protection?

Yes. It acts as an internal vapour barrier and holds a Bs1d0 fire reaction classification.

Is M.A.D. PRO 100 suitable for perforated or timber finishes?

Yes. It is compatible with perforated surface systems and technical timber panelling to achieve improved acoustic solutions.
