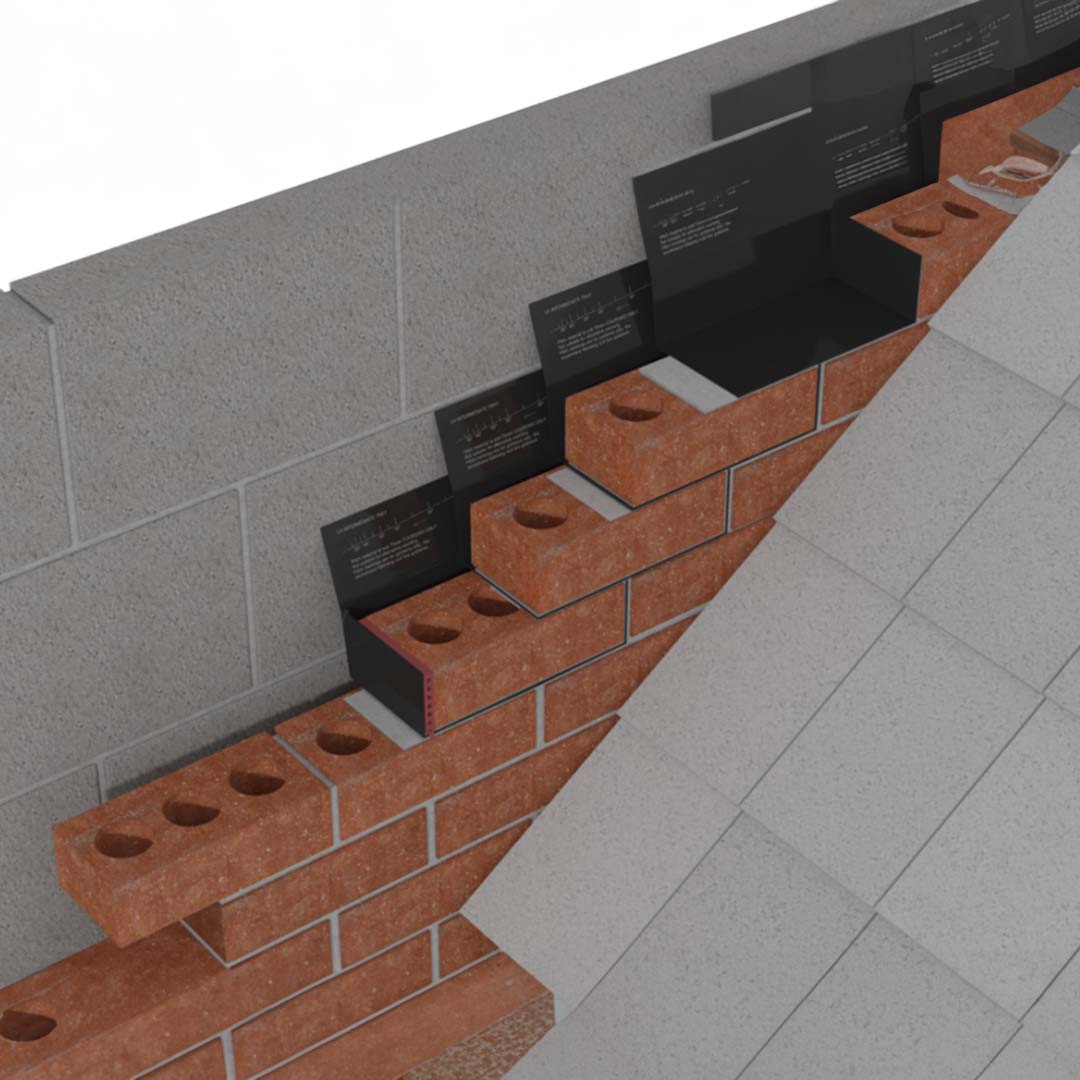

Timloc Everdry Adjustable Stepped Cavity Trays for Brickwork - All Thicknesses

• High adjustable back upstand
• Adjustable upstand to accommodate 50mm-110mm clear cavities
• Roof pitch markings on the tray upstand provide installation guidance
• Cavity tray integrates into the outer leaf only, speeding up installation and allowing for independent construction of inner and outer leaves if needed
• Optional extended tray available for roof pitches below 25 degrees
• System can be supplied with pre-applied polystyrene strips upon request
• Polystyrene strips offer easier removal than mortar and provide a visible indicator of the cavity tray, aiding post-fitted lead work installation (additional charges may apply)

At the abutment of a pitched roof with a cavity wall; on external walls not exceeding 120mm thickness; on roof pitches of 15 degrees and above: The Everdry Adjustable Stepped Cavity Trays for Brickwork are suitable for use at the abutment of a pitched roof with a cavity wall because they effectively prevent water ingress at this critical junction. They are designed for external walls with a thickness of up to 120mm, ensuring compatibility with standard brickwork or similar components with regular course heights of approximately 75mm, including mortar. The cavity trays are adjustable to accommodate roof pitches of 15 degrees and above, making them versatile for various roof designs. They are also suitable for clear cavity widths ranging from 50mm to 110mm, providing flexibility in different cavity wall constructions, ensuring water is directed away from vulnerable areas.

• What are Timloc Everdry Adjustable Stepped Cavity Trays for Brickwork? - Timloc Everdry Adjustable Stepped Cavity Trays are designed to protect brickwork from water penetration in stepped and sloping roof details. They help manage water ingress by guiding it away from the cavity, preventing damp issues in the wall structure.
• What roof pitches are the Timloc Everdry Adjustable Stepped Cavity Trays suitable for? - The Timloc Everdry Adjustable Stepped Cavity Trays are designed to accommodate a wide range of roof pitches, typically from 17.5° to 45°. Their adjustable nature allows for easy customisation to suit different roof angles.
• How are Timloc Everdry Adjustable Stepped Cavity Trays installed? - Installation involves placing the cavity trays in stepped positions along the slope of the roof or at abutment junctions in brickwork. The trays are overlapped to form a continuous barrier that channels water away from the cavity. No specialist tools are required, and the adjustable design simplifies the process.
• Do I need additional components to install the Timloc Everdry Adjustable Stepped Cavity Trays? - No additional components are required for basic installation. However, you may need lead flashings or other roof materials depending on the specific design of the roof and wall structure.
